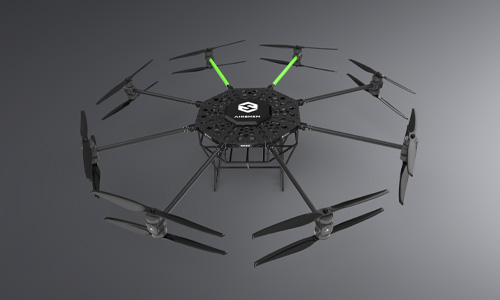

Airbull-225 Cargo Drone
- Aircraft structure：Eight-axis sixteen-rotor
- Unfolded Size：4040*4040*1035mm
- rated load capacity：220KG
- Wind Resistance Grade：Level 7
- Unladen mass：130KG
- full-load flight duration：12 minutes
- No-load hovering time：40 minutes
Product Details
Airbull-225 Cargo Drone，It adopts an eight-axis and sixteen-rotor design. The aircraft has a self-weight of 130 kilograms and a safe rated load capacity of 220 kilograms. Its maximum hover time with no load reaches 40 minutes, and the maximum endurance under safe full-load conditions is 12 minutes. It is equipped with three groups of batteries, totaling 9 units, which supports 8 to 12 hours of daily operation. The maximum takeoff weight of the aircraft is 436 kilograms, and the maximum operational altitude is 5,000 meters.
Service Package
1. Three days of on-site hoisting and trial flight training at the factory
2. Purchase the flagship model, and you will receive one quota for the CAAC Medium Beyond Visual Line-of-Sight Pilot Course in addition to the three-day hoisting training
Product Parameters
机型构型/Drone Structure | 八轴十六旋翼 |
产品材质/Product Material | 30%航空铝合金，70%高强度碳纤维复材 |
整机轴距/Overall Wheelbase | 4170mm |
展开尺寸/Expanded Size | 4040*4040*1035mm |
折叠尺寸/Folded Size | 1700*2200*1560mm(可装在4.2m厢货车) |
空机质量/Empty Aircraft Weight | 130KG |
额定载重/Rated Load | 220KG |
满载续航/Max-load Endurance | 12min |
空载续航/Unload Endurance | 40min |
最大飞行速度/Maximum Flight Speed | 50km/h |
定位精度/Position Accuracy | ±0.02m (RTK) |
防水等级/Waterproof Rating | IPX6 |
抗风等级/Wind Resistance Rating | 7级 |
失效保护/Fail-Safe | 低电量触发自动返航，一键自动返航。220KG吊重，空中一键抛投(0延时) |
